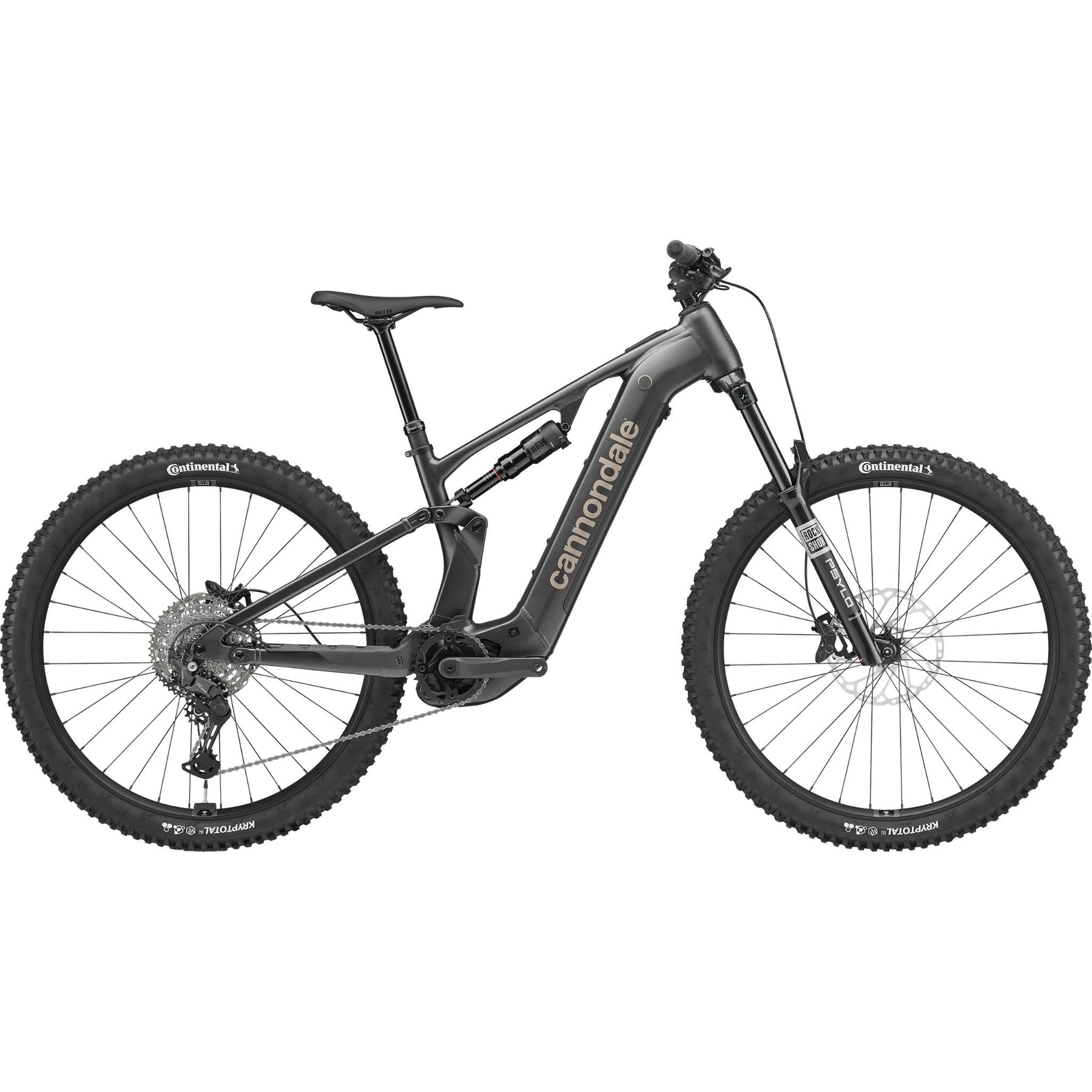

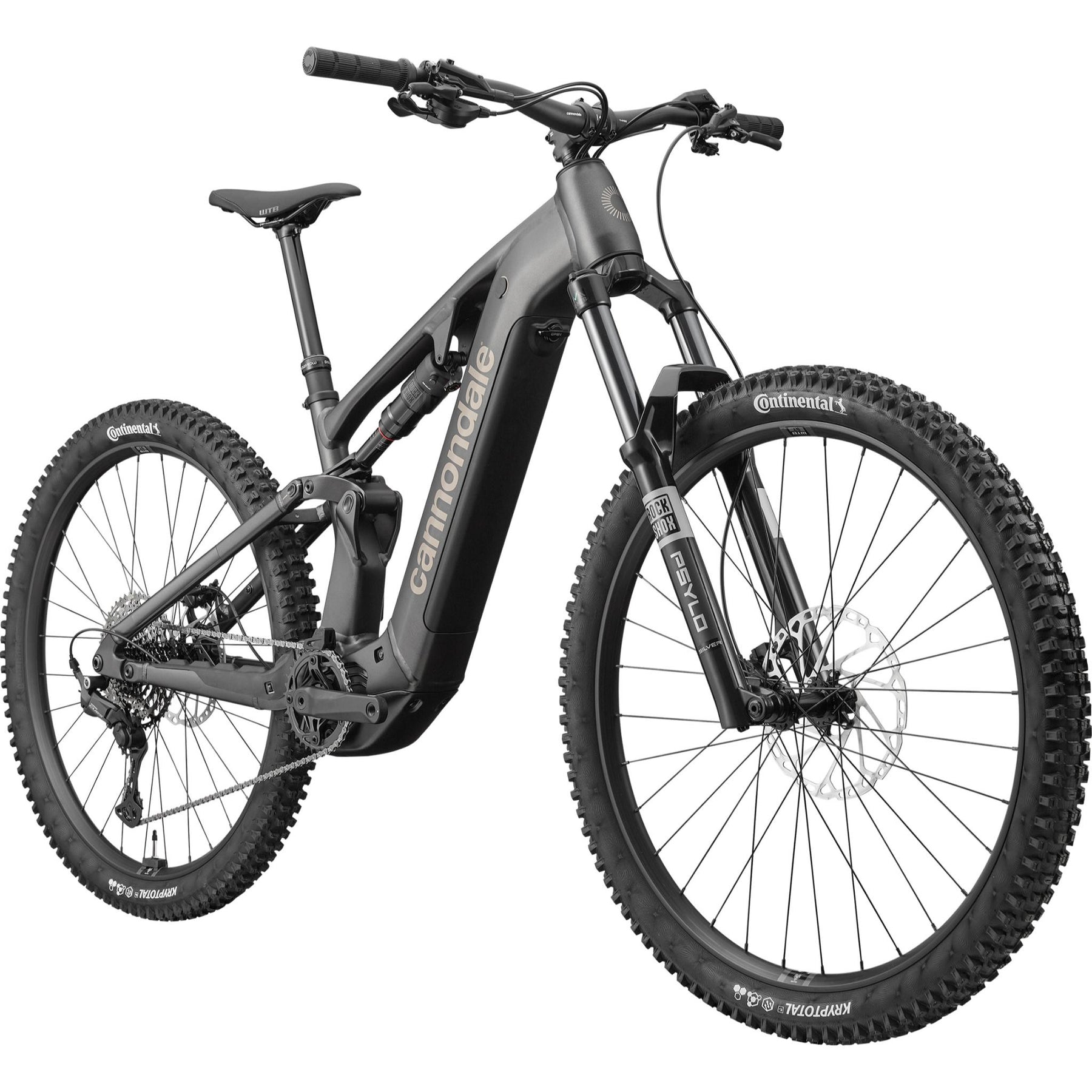

Cannondale Moterra 3 2025

Designed with advanced technology, this sturdy e-bike is constructed from aluminium for unmatched performance on steep descents and challenging climbs. With limitless potential, it's perfect for tackling even the most difficult terrain.

The Cannondale Moterra 3 2025 offers unmatched precision, remarkable agility, and an enjoyable ride on all terrain. Its optimized geometry, shortened chain-stays, and low centre of gravity create a distinct handling experience.

Highlights:

• SmartForm C1 Alloy frame / SR Suntour Zeron 36 fork, 160mm travel
• Bosch SmartSystem - 800wh battery & Performance CX motor
• Shimano CUES 11 Speed / Shimano MT520 4 Piston Brakes

Sizing:

• S: 164 - 165cm
• M: 162 - 175cm
• L: 172 - 185cm
• XL: 182 - 195cm

Specifications::Moterra 3

• Discipline: Enduro/All Mountain

• Material: Aluminium

• Front Travel: 160mm

• Rear Travel: 150mm

• Wheel Size: 29"

• Warranty: Limited Lifetime (frame)

Frame - Moterra, SmartForm C1 Alloy, 29” wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle,
UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm twobolt kickstand compatible, integrated Moterra rear rack and fender mounts
Fork - RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
Rear Shock - RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
Drive Unit - Bosch Performance Line CX
Battery - Bosch PowerTube, 800Wh
Display - Bosch Purion 200
Charger - Bosch 4A
Rims - WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready
Hubs - (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Spokes - DT Swiss Champion 2.0
Tyres - (F) Continental Kryptotal-F, 29x2.4”, Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4”, Enduro Soft Black Foldable
Pedals - Not Included
Crank - FSA Bosch E-bike w/ 55mmchainline, 160mm, 34T
Chain - Shimano LG500, LinkGlide, 11-speed
Cassette - Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Rear Derailleur - Shimano CUES U6000, LinkGlide
Shifters - Shimano CUES U6000, 11-speed, LinkGlide
Handlebar - Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips - Cannondale TaperRidge
Stem - Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset - Acros ICR, 1.5” to 1.8”, sealed bearings
Brakes - Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
Brake - Levers Shimano MT501 hydraulic disc
Saddle - WTB Silverado Medium
Seatpost - Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Sizes - SM, MD, LG, XL
Extras - Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible
